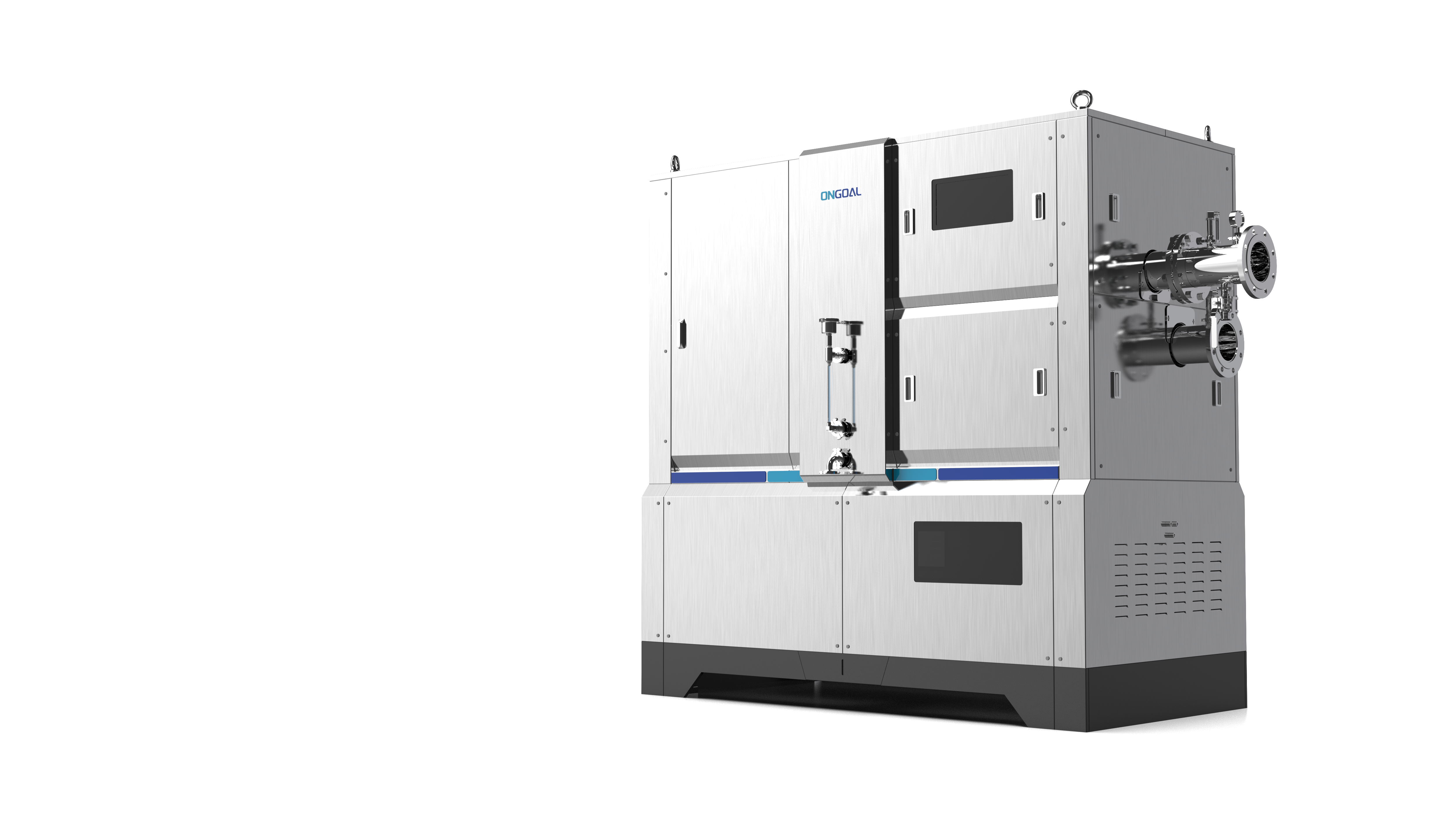

High Efficiency Slurry Mixing System

The new high efficiency slurry mixing system adopts the powder and liquid feeding at the same time, and the narrow and long path of the dispersion chamber makes all slurry pass through the effective dispersion zone.

Product Features

Small size: small occupation height, compatibility and flexibility greatly improved

Capacity ramp-up: can be customized from 100L to 3000L, or even larger models, break through the capacity bottleneck

Smooth discharging: innovative design is adopted to solve the problems of discharging and blocking, easy overload and so on, and the performance stability is greatly improved

Better quality: product consistency is better and the applicable solid content is higher to meet the needs of high-quality battery slurry production

Energy saving and environment-friendly: lower energy consumption

Efficiency improvement: the "inevitable" slurry mixing process is adopted to reduce the number of cycles and greatly improve the slurry mixing efficiency

Product Video

Video Introduction

Product Specifications

High Efficiency Slurry Mixing System

Models	Design Capacity	Batch Size	Circulating Flow	Average Dry Powder Feed	Engine Speed	Engine Power
YGZJ100	100	150	50	10	2850	37
YGZJ300	300	450	200	30	2000	55
YGZJ600	600	900	300	60	2000	90
YGZJ900	900	1350	450	90	1500	132
YGZJ1200	1200	1800	600	120	1500	185
YGZJ1500	1500	2250	750	150	1500	200
YGZJ2400	2100	3600	1200	240	1000	280

Note: The contents in this document are for information purposes only, and the actual product parameters depend on the specific design scheme
